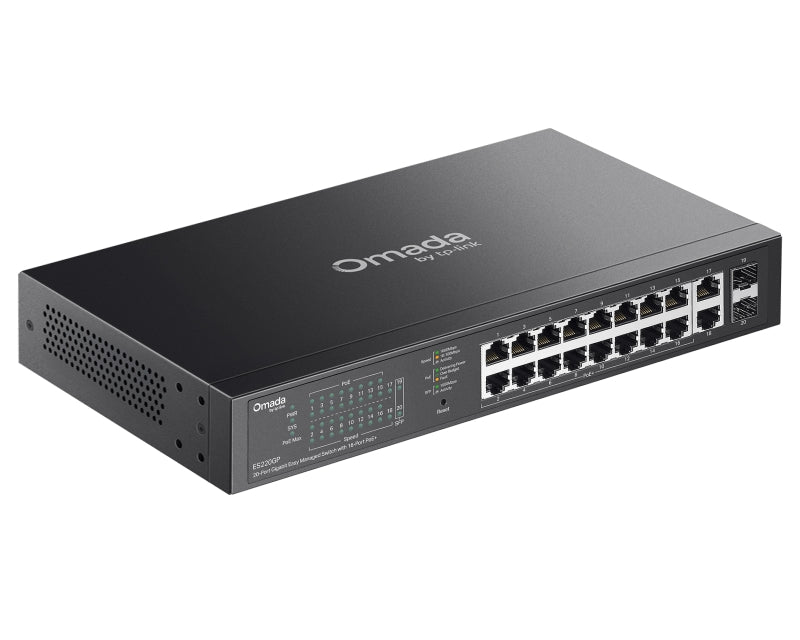

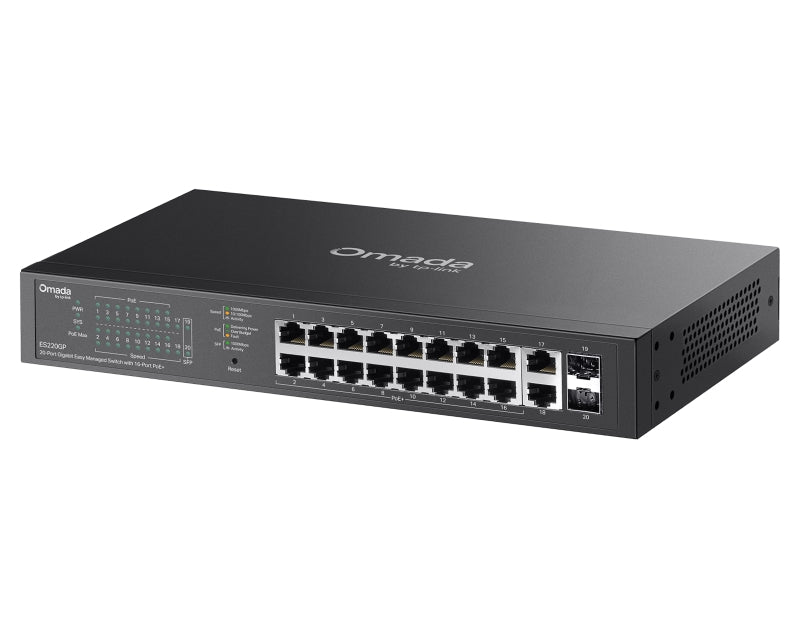

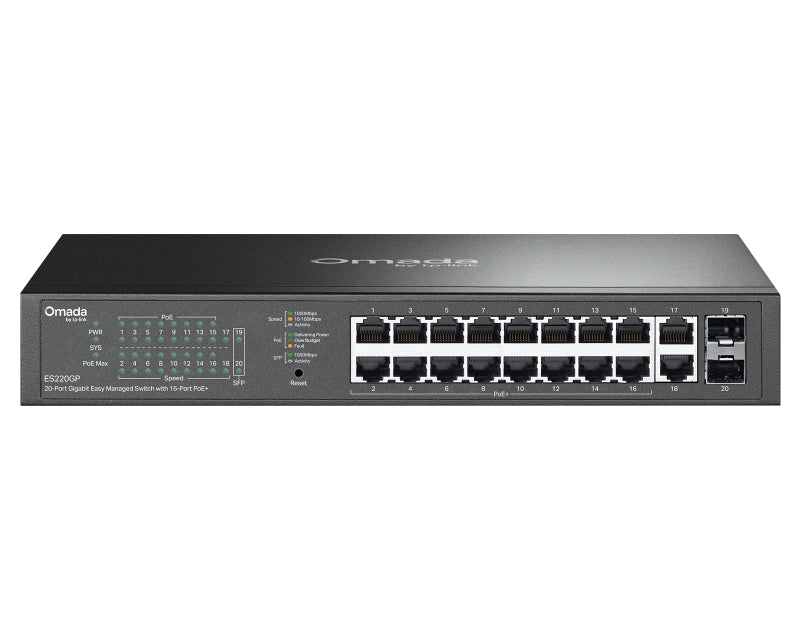

ES220GP(UN) Omada 20-Port Gigabit Easy upravljivi Switch sa16-Port PoE+

Osnovne karakteristike
Tip: Switch
Vrsta: Managed, Rackmount

Mreža
Standardi: IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1q
Protok: 10/100/1000Mbps
Switching: 40Gbps
Forwarding: 29.76Mbps

MAC adrese
Tabela: 8k
Automatsko učenje: Da
Automatsko zastarivanje: Da

VLAN
Kapacitet: 32
Standardi: IEEE 802.1q
QinQ: Da
Ostalo: Port-based VLAN, VLAN tagging, MTU, 4K VID

Zaštita
Ostalo: Anti-theft lock hole, Surge Protection ±6KV

Memorija
Bafer: 4Mbit

Dodatne funkcije
PoE: PoE+
Upravljanje: Web konfigurisanje, Omada App, Zero-Touch Provisioning, Cloud Access, Centralized Management, QoS
Dodatne funkcije: DHCP klijent, Port mirroring, Cable Diagnostics, Static Link Aggregation, Loop Prevention, PoE Auto Recovery, Storm Control, Batch Configuration, Batch Firmware Upgrading, Unified Configuration, 802.1ab LLDP, Automatic Device Discovery, Port Statistics, Flow control, Loopback Detection, IGMP Snooping, Port Isolation, Port auto-negotiation, Auto MDI/MDIX, 8 Priority Queues
Podržane tehnologije: Store-And-Forward
Ostalo: Jumbo Frame do 15 KB, CE, FCC, RoHS sertifikovano, Fanless, Up to 250m PoE transmission distance

Priključci napred i pozadi
RJ-45: 18 x 10/100/1000Mbps POE+ RJ45 portova
Optički: 2× Gigabit SFP Slots

Fizičke karakteristike
Dimenzije: 294mm x 180mm x 44mm
Materijal: Metalno kućište
Boja: Crna
Pakovanje: Naponski kabl, Set za montažu, 1X QIG, gumene nožice, Set šrafova

Ostalo
Upravljanje: Web konfigurisanje

Reklamacioni period
Reklamacioni period: 24 meseca
